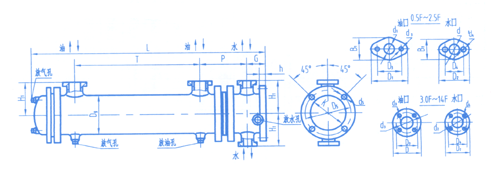

型號
|
A 0.5F |
A 0.65F |
A 0.8F |
A 1.0F |
A 1.0F |
A 1.2F |
A 1.46F |
A 1.7F |
A 2.1F |
A 2.5F |
A 3.0F |
A 3.6F |
A 4.3F |
A 5.0F |
A 6.0F |
A 7.2F |
A 8.5F |
A 10F |
A 14F |
A 16F |
D5 |
186 |
186 |
186 |
220 |
220 |
220 |
270 |
270 |
270 |
308 |
308 |
308 |
340 |
340 |
340 |
406 |
406 |
406 |
406 |
406 |
K |
164 |
164 |
164 |
190 |
190 |
190 |
240 |
240 |
240 |
278 |
278 |
278 |
310 |
310 |
310 |
366 |
366 |
366 |
366 |
366 |
G |
75 |
75 |
75 |
80 |
80 |
80 |
85 |
85 |
85 |
90 |
90 |
90 |
95 |
95 |
95 |
100 |
100 |
100 |
100 |
100 |
Dg |
114 |
114 |
114 |
150 |
150 |
150 |
186 |
186 |
186 |
219 |
219 |
219 |
245 |
245 |
245 |
325 |
325 |
325 |
325 |
325 |
L |
620 |
745 |
875 |
760 |
886 |
1010 |
825 |
975 |
1125 |
960 |
1085 |
1235 |
1015 |
1165 |
1340 |
1100 |
1225 |
1400 |
1400 |
1400 |
H1 |
95 |
95 |
95 |
115 |
115 |
115 |
140 |
140 |
140 |
200 |
200 |
200 |
240 |
240 |
240 |
280 |
280 |
280 |
280 |
280 |
P |
93 |
93 |
93 |
105 |
105 |
105 |
120 |
120 |
120 |
170 |
170 |
170 |
190 |
190 |
190 |
210 |
210 |
210 |
210 |
210 |
T |
357 |
482 |
607 |
460 |
585 |
710 |
500 |
650 |
800 |
565 |
690 |
840 |
570 |
720 |
895 |
590 |
715 |
890 |
890 |
890 |
法蘭 |
橢圓 圓形 |
d1 |
25 |
25 |
25 |
32 |
32 |
32 |
40 |
40 |
40 |
50 |
50 |
50 |
65 |
65 |
65 |
80 |
80 |
80 |
80 |
80 |
D1 |
90 |
90 |
90 |
100 |
100 |
100 |
118 |
118 |
118 |
160 |
160 |
160 |
180 |
180 |
180 |
195 |
195 |
195 |
195 |
195 |
B1 |
64 |
64 |
64 |
72 |
72 |
72 |
85 |
85 |
85 |
|
|
|
|
|
|
|
|
|
|
|
D3 |
65 |
65 |
65 |
75 |
75 |
75 |
90 |
90 |
90 |
125 |
125 |
125 |
145 |
145 |
145 |
160 |
160 |
160 |
160 |
160 |
d3 |
11 |
11 |
11 |
11 |
11 |
11 |
14 |
14 |
14 |
18 |
18 |
18 |
18 |
18 |
18 |
8-Ø18 |
8-Ø18 |
8-Ø18 |
8-Ø18 |
8-Ø18 |
d1 |
20 |
20 |
20 |
25 |
25 |
25 |
32 |
32 |
32 |
40 |
40 |
40 |
50 |
50 |
50 |
65 |
65 |
65 |
65 |
65 |
D2 |
80 |
80 |
80 |
90 |
90 |
90 |
100 |
100 |
100 |
145 |
145 |
145 |
160 |
160 |
160 |
180 |
180 |
180 |
180 |
180 |
B2 |
45 |
45 |
45 |
64 |
64 |
64 |
72 |
72 |
72 |
|
|
|
|
|
|
|
|
|
|
|
D4 |
55 |
55 |
55 |
65 |
65 |
65 |
75 |
75 |
75 |
110 |
110 |
110 |
125 |
125 |
125 |
145 |
145 |
145 |
145 |
145 |
d4 |
11 |
11 |
11 |
11 |
11 |
11 |
11 |
11 |
11 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
我廠將根據客戶來樣來圖非標產品進行設計,報價. |
